Yak Power Wireless Digital Switching System (5- or 8-Circuit Systems)

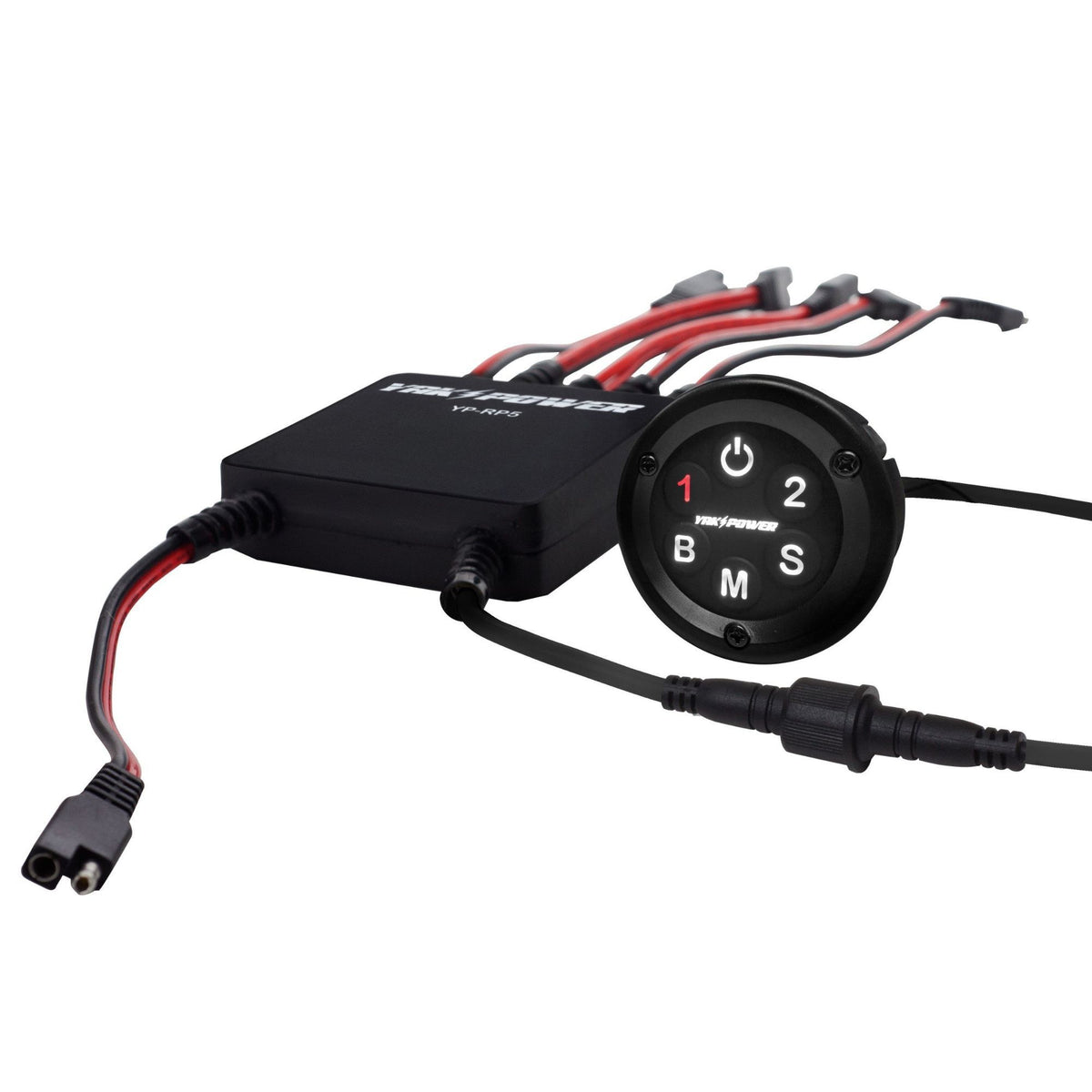

Yak Power Wireless Digital Switching System

Choose your configuration: 5-Circuit or 8-Circuit. Both systems provide wireless control of 12V kayak accessories using a keypad and Bluetooth mobile app—helping reduce rigging time and keep installs clean.

General Features

• Wireless RF + Bluetooth control
• Mobile app control
• Master Power with Last Mode Memory
• Yak Power plug-and-play SAE connections
• Fully potted internal electronics for durability
• Wireless keypad with rail-mount hardware (no control cable required)
• Inline fused power wiring
• Lowrance compatibility (HDS Live, HDS Pro, Elite FS) (software dependent)

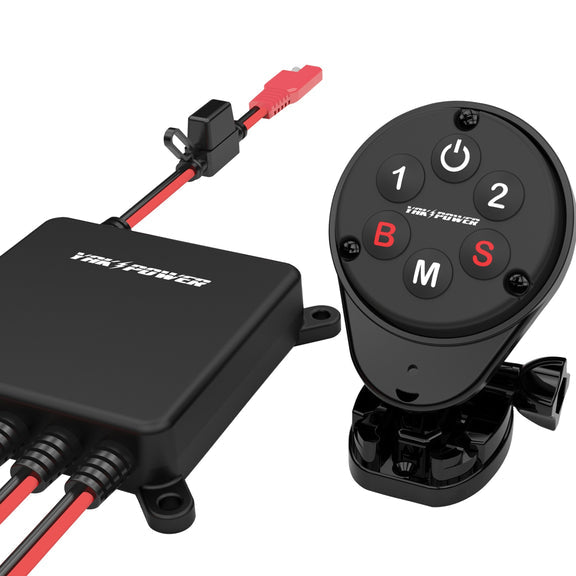

5-Circuit Wireless Switching System

A streamlined setup for controlling essentials like fish finders, lighting, pumps, charging ports, and other 12V accessories. Each circuit is controlled independently from the keypad (buttons illuminate RED when active), and Master Power can shut down or restore the system while remembering your last settings.

5-Circuit Specs

• Five (5) switched accessory circuits
• Designed for 15 amps total current draw
• Keypad action mount with T-nut for rail mounting
• Remote lanyard and optional surface mount included
• Optional keypad hardwire kit (sold separately)

8-Circuit Wireless Switching System

Built for fully rigged kayaks. Eight circuits provide expanded control for lighting and accessories, including dedicated NAV/Anchor functionality and three accessory circuits.

Keypad & NAV Button Functions

• Master Power turns the panel ON/OFF and restores Last Mode circuits when turned back ON.
• Buttons illuminate WHITE when OFF and RED when ON (excluding NAV button behavior below).
• NAV button sequence:
  • 1st press: NAV + Anchor ON (button turns GREEN)
  • 2nd press: NAV OFF, Anchor ON (button turns RED)
  • 3rd press: Anchor OFF (button returns to WHITE)

8-Circuit Specs

• Eight (8) switched accessory circuits
• Designed for 20 amps total current draw
• Fail-safe illuminated buttons on switch box (for quick diagnostics)
• Integrated RF/Bluetooth control + mobile app control
• Fully potted internal electronics for durability

Compatibility & Notes

• Designed for 12V kayak electronics and accessories
• Compatible with Yak Power plug-and-play components
• Accessories, battery, and additional wiring sold separately unless bundled
